HPHT Plugs

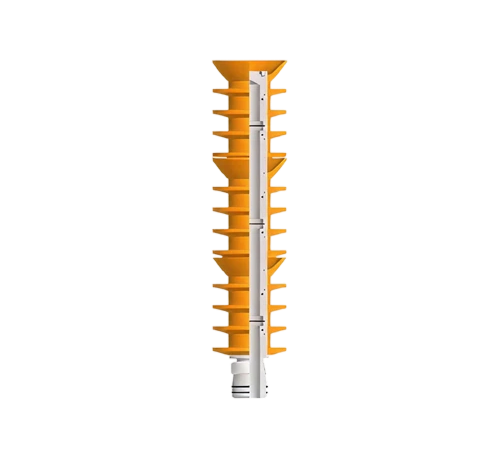

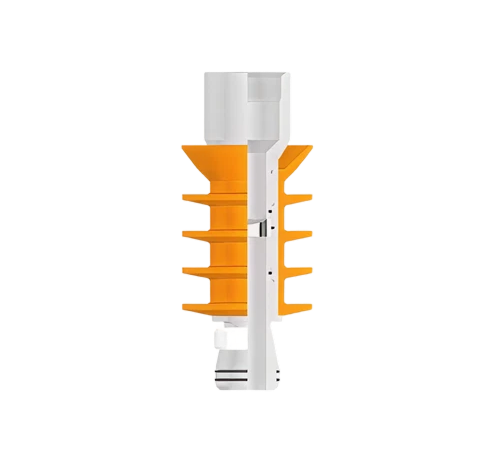

IRI’s modular high-pressure rupture plug system can be assembled at the shop or field as a top, bottom or multi-plug system by simply changing a few components. It is ideally suited for cemented frac strings and can be configured for dry or wet shoe applications. Additionally, the plug has been designed to make up to different-sized plugs in wells where a tapered string is going to be installed by the operator. The plug can be dressed with different rupture disks for multiple plug staging and loaded into IRI Cement Heads for pre-planned launch sequencing.
Contact Us
Features
- Modular design – can be configured as a top, bottom or multi-plug system in the shop or field
- Superior wiping performance
- Pressure ratings to 10,000psi
- Rupture disks available up to 6,000psi
- Temperature ratings to 350F
- Ratchet ring securely latches the plug into float equipment or the previous plug
- Can be integrated with different plug sizes for tapered casing string applications
- All plugs are PDC drillable
Options
- Available in Polyurethane, or HNBR materials
- Temperature Ratings to 350F
- Combination plugs are available for tapered casing strings
