Extra High Pressure Single Plug
Industrial Rubber offers an Extra High Pressure Single Plug Cement Head. Our Cement Heads are a modular design, engineered to work with quick couplers, circulating caps and swages, Fast Latch Coupler, swivels, or as a stand-alone cement head.
Contact Us
Features
- Modular design
- Eliminates personnel in the derrick
- Can be reloaded on site
- Manufactured to ISO 9001 Standards
WORKING PRESSURE
2 7/8″ – 7″ 10,000 PSI
7 5/8″ – 9 5/8″ 7500 PSI
10 3/4″ – 13 3/8″ 5000 PSI
16″ – 20″ 3000 PSI
Options
- Available in Single, Double or Triple configurations
- Tattle Tail options: Wireline or Mechanical
- Conventional (Welded) or Extra High Pressure (Integral) options

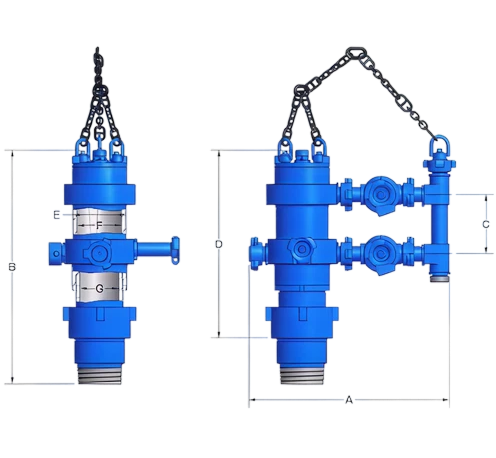

Physical Dimensions
SIZE
2 7/8"
3 1/2"
4 1/2"
5 1/2"
6 5/8"
7"
7 5/8"
9 5/8"
10 3/4"
13 3/8"
16"
18 5/8"
20"
A
44
44
45
46
48
48
49
51
52
55
57
60
62
B
53
53
53
53
53
53
53
54
56
57
61
63
65
C
13
13
13
13
13
13
13
15
15
16
20
22
24
D
44
44
44
44
44
44
44
44
46
47
51
53
55
E (OD)
5.5
5.8
7
7.3
9.3
9.3
9.5
11.5
13.6
16.5
18.5
20.8
22.5
F(ID)
2.9
3.5
4.5
5.5
6.6
7
7.6
9.6
10.8
13.4
16
18.6
20
G (SUB ID)
2.4
2.7
3.9
4.7
5.7
5.9
6.7
8.5
9.8
12.3
15
17.8
18.7
WEIGHT (LBS.)
745
760
820
915
1000
1075
1090
1325
1400
1945
2090
2300
2645
